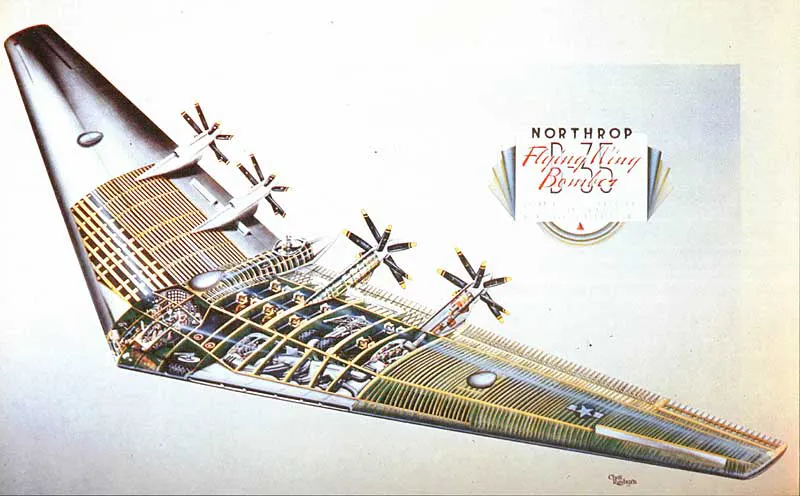

Sweeping across the frame like a single, purposeful wing, the Northrop XB-35 is rendered here as a cutaway that invites you inside the machine rather than merely around it. The artwork emphasizes the “flying wing” idea—no conventional fuselage or tail—letting the aircraft’s broad planform do the work of lift and stability. Even at a glance, the design reads as an ambitious leap in aviation engineering, balancing elegance with a very practical goal: packing a bomber’s capabilities into a radically streamlined shape.
Beneath the smooth skin, the illustration opens up a dense lattice of internal structure, with ribs and spars forming a grid that organizes the wing’s many compartments. Along the trailing edge, multiple propellers are shown in line, hinting at the complex propulsion arrangement that had to fit within this unconventional layout. Compartments and systems appear distributed across the wing, suggesting how designers had to rethink crew spaces, equipment placement, and mechanical routing when the “airplane” becomes almost entirely wing.
Collectors and aviation historians will appreciate how this Northrop XB-35 cutaway doubles as both technical diagram and period storytelling, capturing the optimistic problem-solving spirit of mid-century aeronautical invention. For a WordPress post focused on historic aircraft and experimental bombers, it’s an SEO-friendly centerpiece that speaks to flying wing design, early stealth-like streamlining, and the engineering challenges of integrating structure and propulsion in a tailless airframe. The result is a compelling visual primer on why the XB-35 remains a touchstone for anyone fascinated by bold departures from conventional airplane design.
